Linear 500mm

Product Photo (click to zoom)

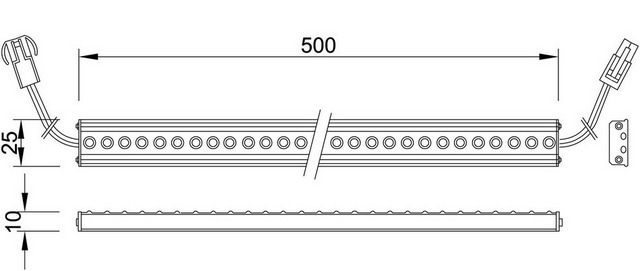

Product Diagram (click to zoom)

Applications

  • Ultra Rugged Outdoor/Indoor
  • Product Displays
  • Cove or Up Lighting
  • Refrigeration Units

Specifications

External Driver Required Yes
Driver Supplied Yes
Dimmable Optional
Operating Voltage 12V AC, 24V AC
Materials Aluminum
Lighting Angles 90°
IP Rating IP68
Power Factor > 0.95
Rated Life 50,000 hours
CRI >75
Weight 150 grams
Measurements 500x25x10mm

Power Configurations

Power Consumption 5W
LED Configuration 54 LEDs
Chip Manufacturer Epistar
Colour/Brightness* Warm White - 210lm
Cool White - 250lm
*Other colours and customisations available. Please contact us for details.
