Linear 250mm

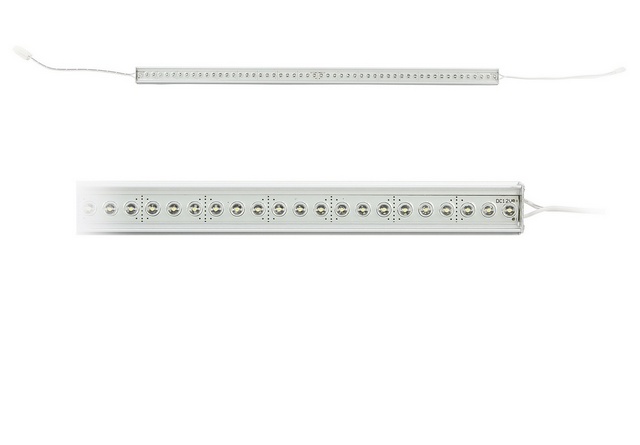

Product Photo (click to zoom)

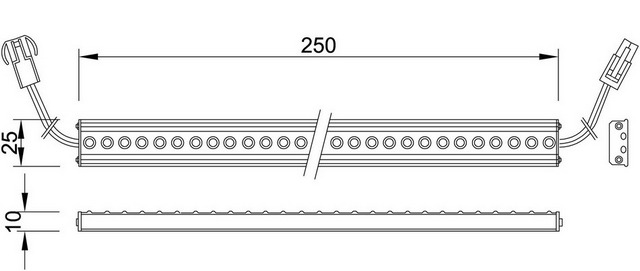

Product Diagram (click to zoom)


  • Ultra Rugged Outdoor/Indoor
  • Product Displays
  • Cove or Up Lighting


External Driver Required Yes
Driver Supplied Yes
Dimmable Optional
Operating Voltage 12V AC, 24V AC
Materials Aluminum
Lighting Angles 90°
IP Rating IP68
Power Factor > 0.95
Rated Life 50,000 hours
CRI >75
Weight 75 grams
Measurements 250x25x10mm

Power Configurations

Power Consumption 2.5W
LED Configuration 27 LEDs
Chip Manufacturer Epistar
Colour/Brightness* Warm White - 105lm
Cool White - 125lm
*Other colours and customisations available. Please contact us for details.
