Indoor & Outdoor Infrastructure / Street Lights

3 Panel

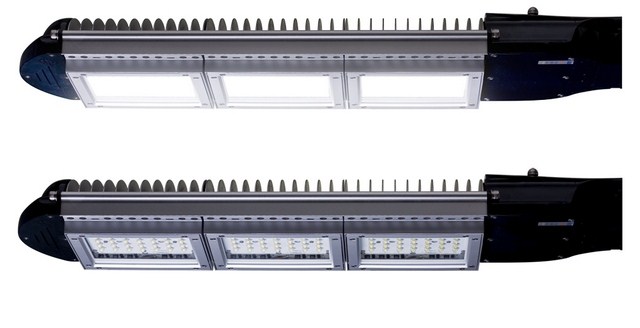

Product Photo (click to zoom)

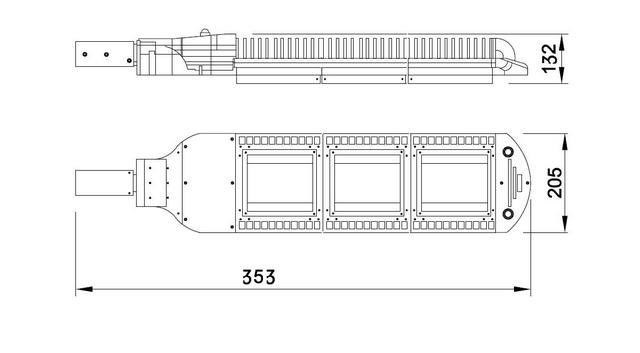

Product Diagram (click to zoom)

Applications

  • Road lighting
  • Tunnels
  • Outdoor
  • Warehouse/ Highbay

Specifications

External Driver Required Not Required
Dimmable No
Materials Aluminum
Lighting Angles 130° x 80°
IP Rating IP65
Power Factor > 0.95
Rated Life 50,000 hours
CRI >75
Weight 7500 grams
Measurements 953x205x132mm

Power Configurations

Power Consumption 109W
LED Configuration 3 Panels with 28 LEDs per panel
Chip Manufacturer Bridgelux
Colour/Brightness* Warm White - 5712lm
Cool White - 7140lm
*Other colours and customisations available. Please contact us for details.
