Indoor & Outdoor Infrastructure / Street Lights

2 Panel - Long

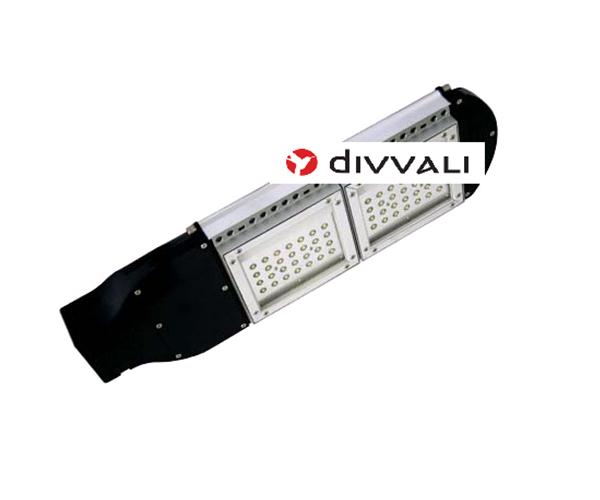

Product Photo (click to zoom)

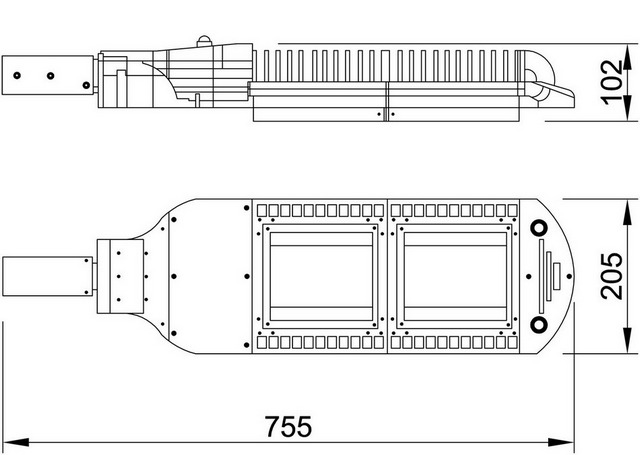

Product Diagram (click to zoom)

Applications

  • Road lighting
  • Tunnels
  • Outdoor
  • Warehouse/ Highbay

Specifications

External Driver Required Not Required
Dimmable No
Operating Voltage 100-240V AC
Materials Aluminum
Lighting Angles 130° x 80°
IP Rating IP65
Power Factor > 0.95
Rated Life 50,000 hours
CRI >75
Weight 5600 grams
Measurements 755x205x102mm

Power Configurations

Power Consumption 72W
LED Configuration 2 Panels with 28 LEDs per panel
Chip Manufacturer Bridgelux
Colour/Brightness* Warm White - 3808lm
Cool White - 4670lm
*Other colours and customisations available. Please contact us for details.
